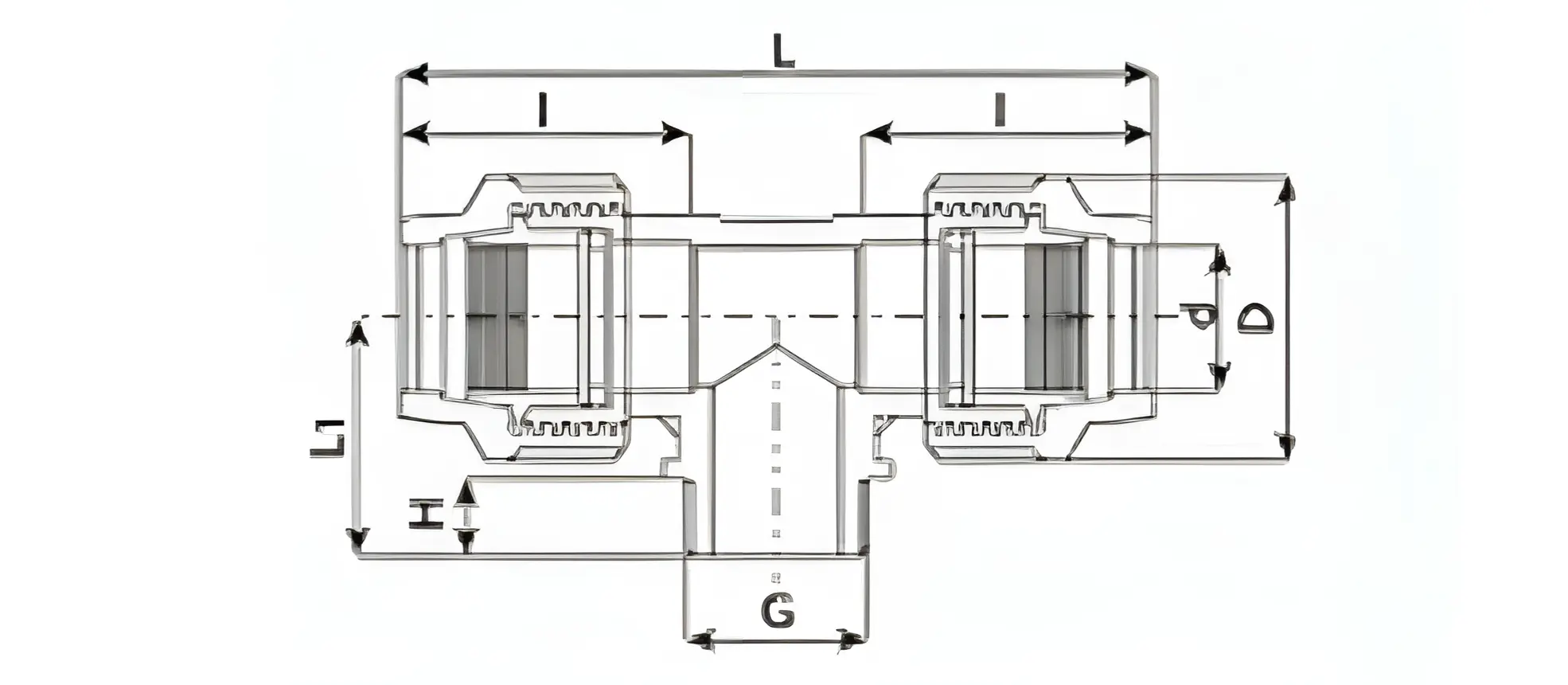

Polyprpylene Compression 90 Degree Male Threaded Tee
Polyprpylene Compression 90 Degree Male Threaded Tee are made from the raw material and are available in size from 20mm o.d x 1\2 n.b. x20mm o.d. to 110mm o.d. this fittings is designed to connect a lengths of Polyprpylene (PE) pipe of the same diameter to from an angle of 90 be degrees which can be done assembly and installation take place without need of any adhesives or welding material.
| CODE NO | SIZE | PCS/CTN | PCS WEIGHT (KGM) | Carton Size |
|---|---|---|---|---|
| 5010024 | 25x1\2 | 120 | 0.160 | 50x34x28 |
| 5010025 | 25x3\4 | 120 | 0.184 | 50×34×28 |
| 5010031 | 32x3/4" | 75 | 0.253 | 50×34×28 |
| 5010032 | 32x1 | 75 | 0.328 | 50×34×28 |
| 5010040 | 40x1-1\4 | 45 | 0.841 | 50×34×28 |
| 5010050 | 50x1-1\2 | 30 | 1.290 | 50×34×28 |
| 50010063 | 63x2 | 15 | 1.210 | 50×34×28 |
| 50010074 | 75 x 2 | 11 | 2.950 | 50×34×28 |
| 5010075 | 75x2-1\2 | 10 | 3.675 | 50x34x28 |
| 5010090 | 90x3 | 5 | 1.800 | 50x34x28 |
| 5010110 | 110x4 | 3 | 3.003 | 50x34x28 |
